Linear AE-100 Manual

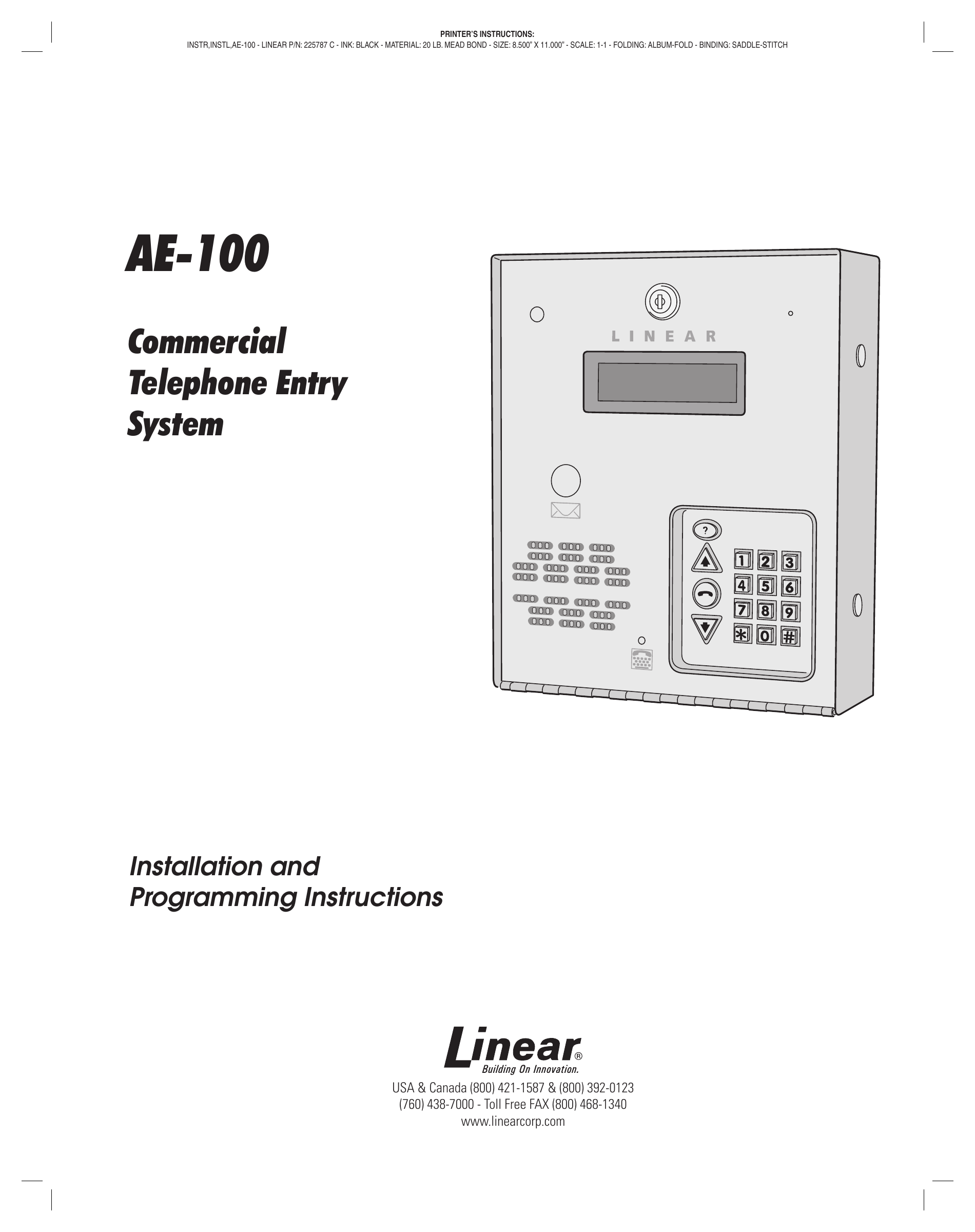

Cover page of installation and programming instructions for the AE-100 telecommunications system by Linear, with a diagram of the system device and company contact information.

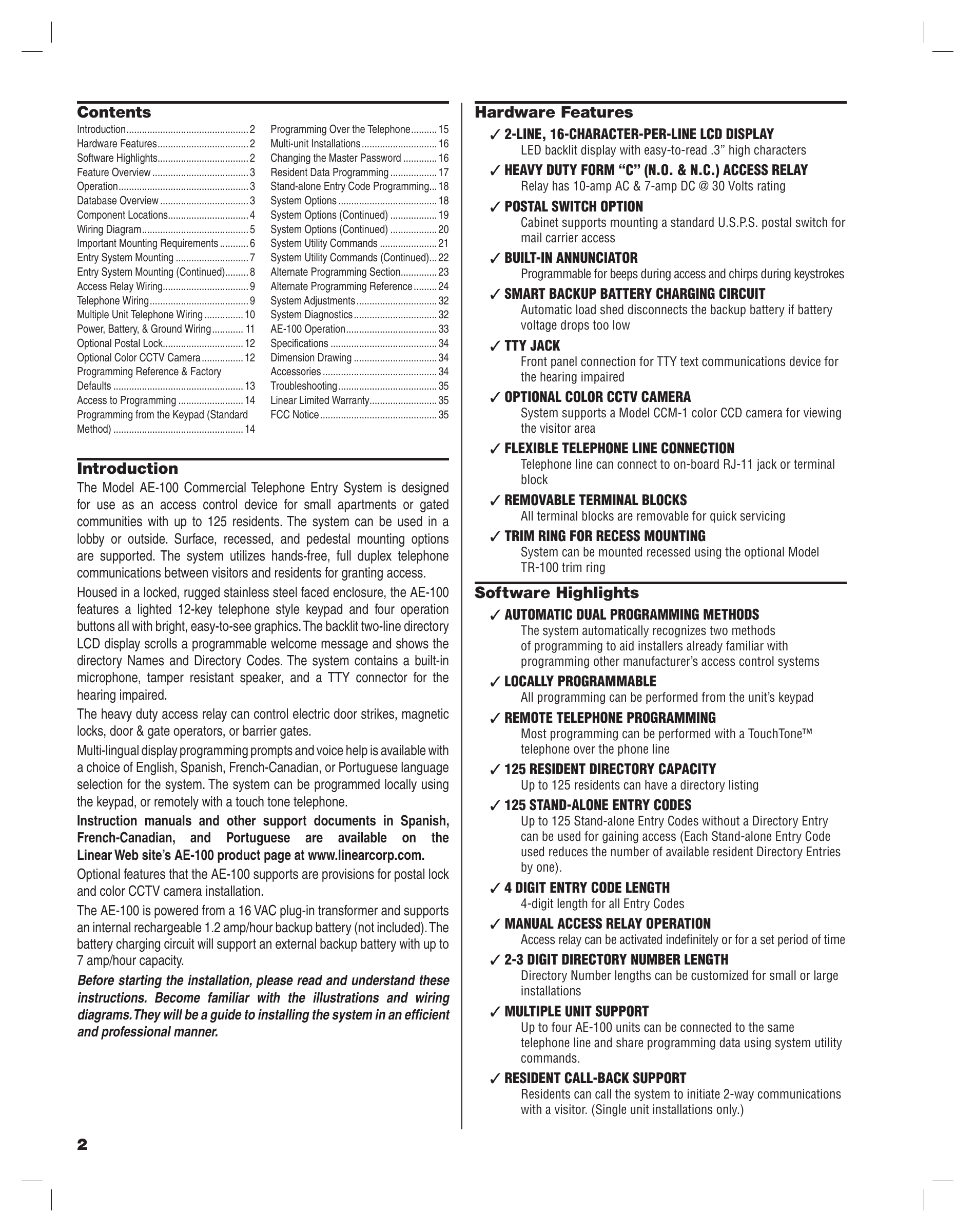

Double-page spread of a technical manual, with the left page showing the table of contents for an AE-100 model telephone system, including sections on hardware features, operation, programming, and system options. The right page lists hardware features and system specifications such as LCD display, relay, switch options, and programming capabilities.

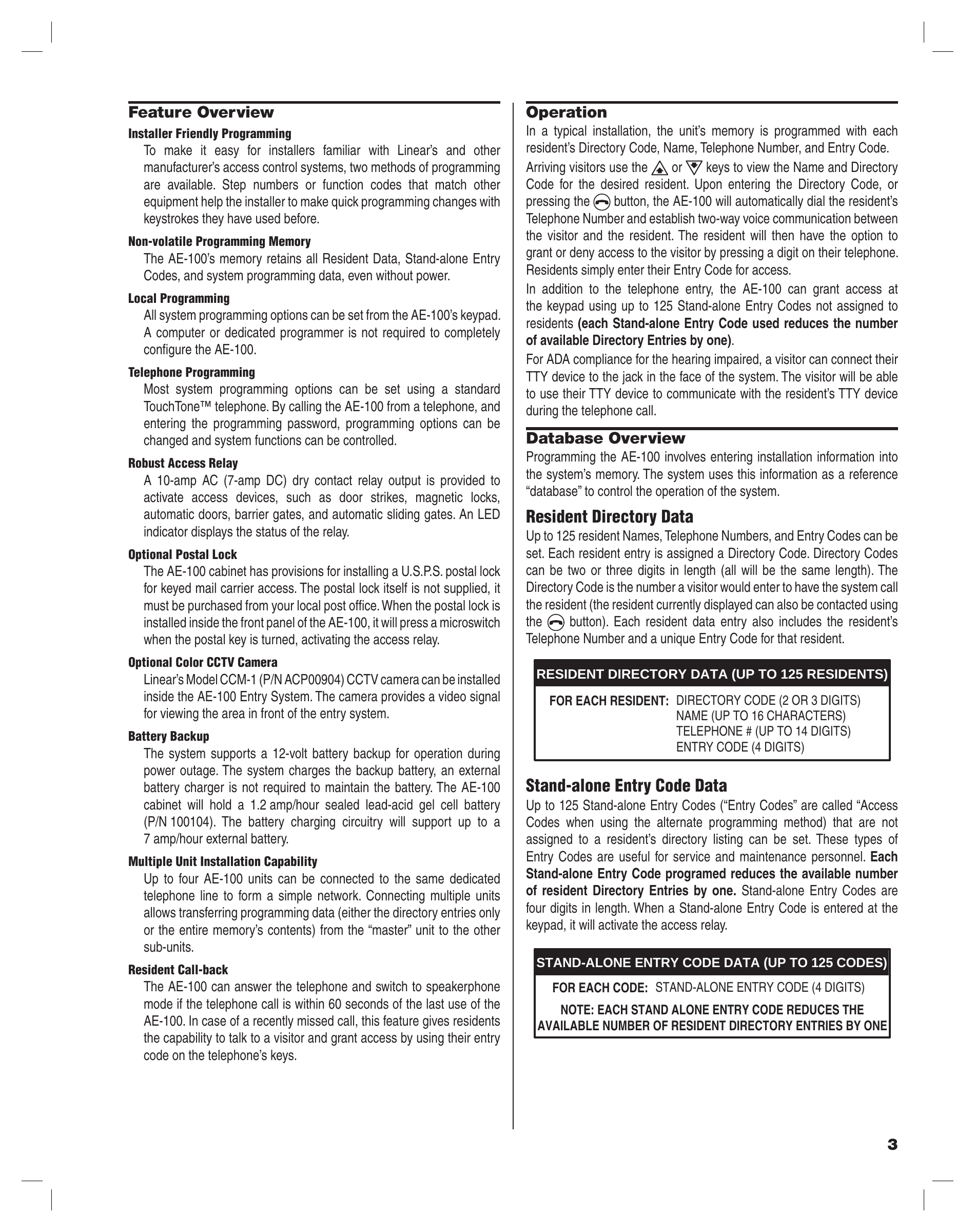

Page 3 of a technical manual describing features and operation of an AE-100 entry system, including programming, relay, backup, remote control, and resident directory data functions.
Diagram of a security system control panel showing component locations and labels for parts such as the microphone, LCD display, keypad lighting, various connectors, and optional camera.
A wiring diagram for an alarm or security system, showing components like backup battery, electric door strike, power transformer, and connection points.

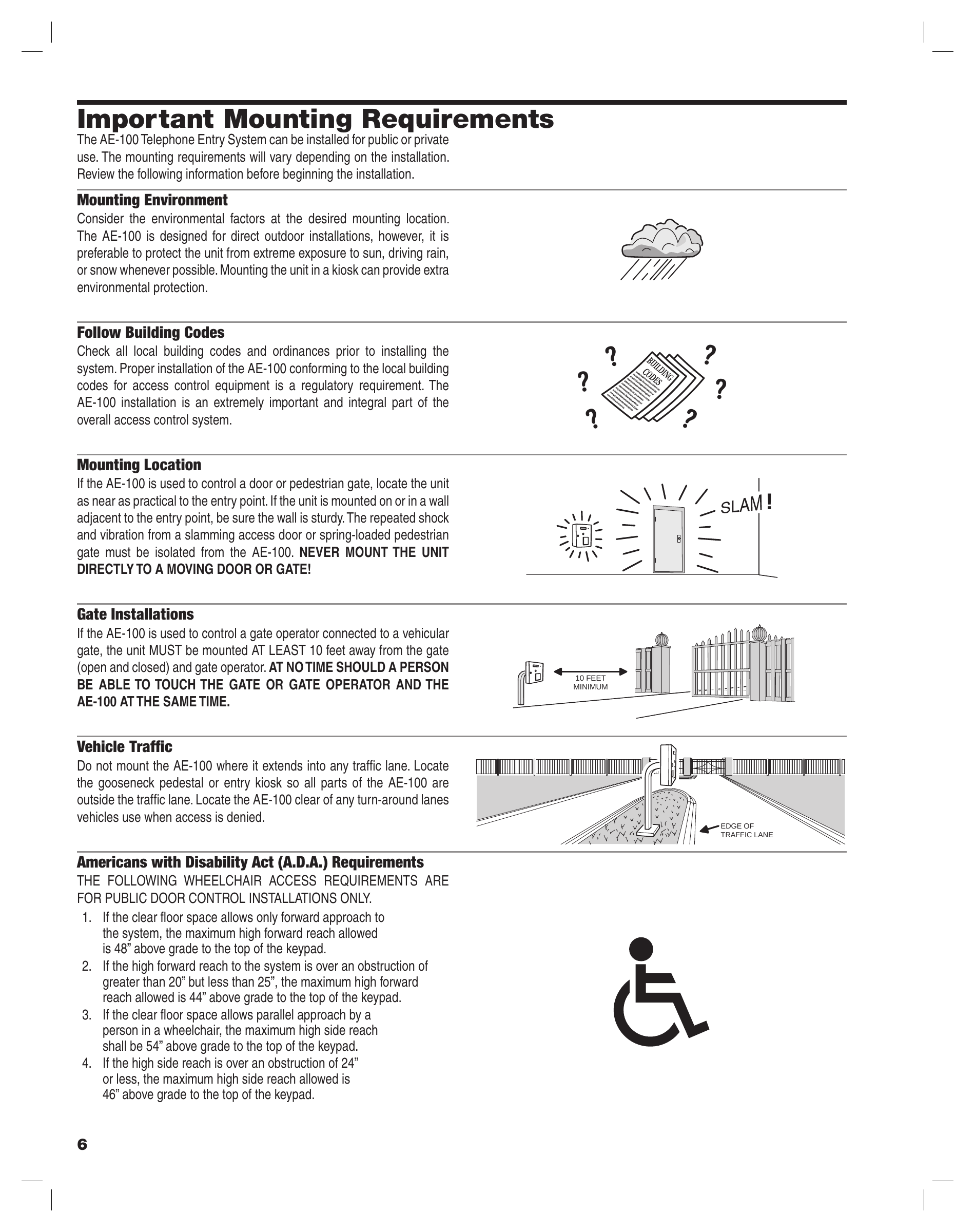

Installation instructions page with text and illustrations, including raincloud, building codes document, wheelchair icon, door and gate, and a traffic lane diagram.
Page from a manual showing instructions and diagrams for installing an AE-100 cabinet, including surface mounting, pedestal mounting, wiring, and alarm contacts.
Page from an instructional manual showing steps to mount a cabinet with diagrams, illustrations, and numbered instructions for marking, drilling, and attaching the cabinet.
Page from a technical manual about wiring connections for access relays, magnetic locks, and telephone wiring, including diagrams and instructions.
Diagram of a multiple unit telephone wiring system with master and sub-units connected via telephone terminals.

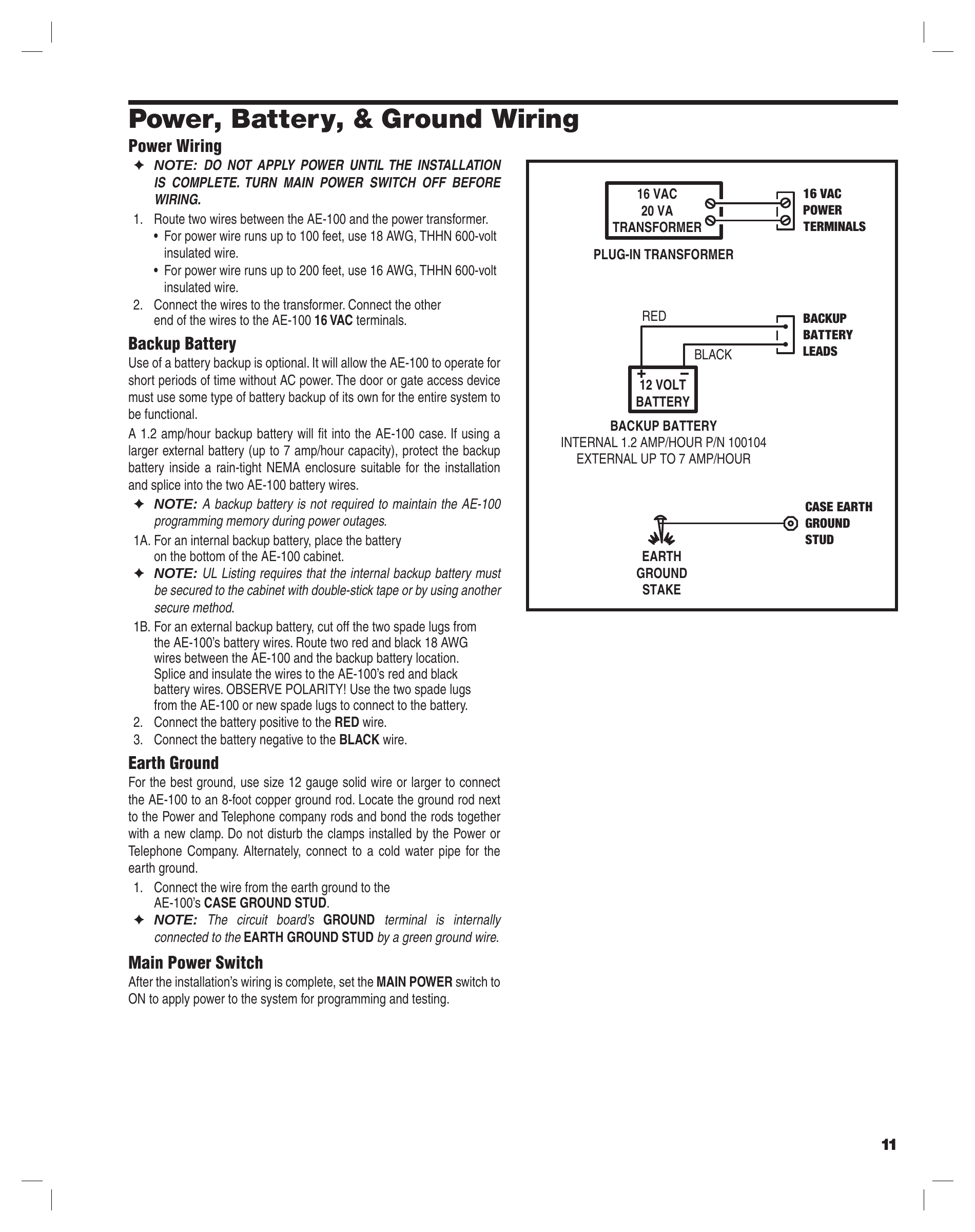

Page from technical manual titled 'Power, Battery, & Ground Wiring' with diagrams and instructions for electrical wiring, battery backup, grounding, and main power switch.

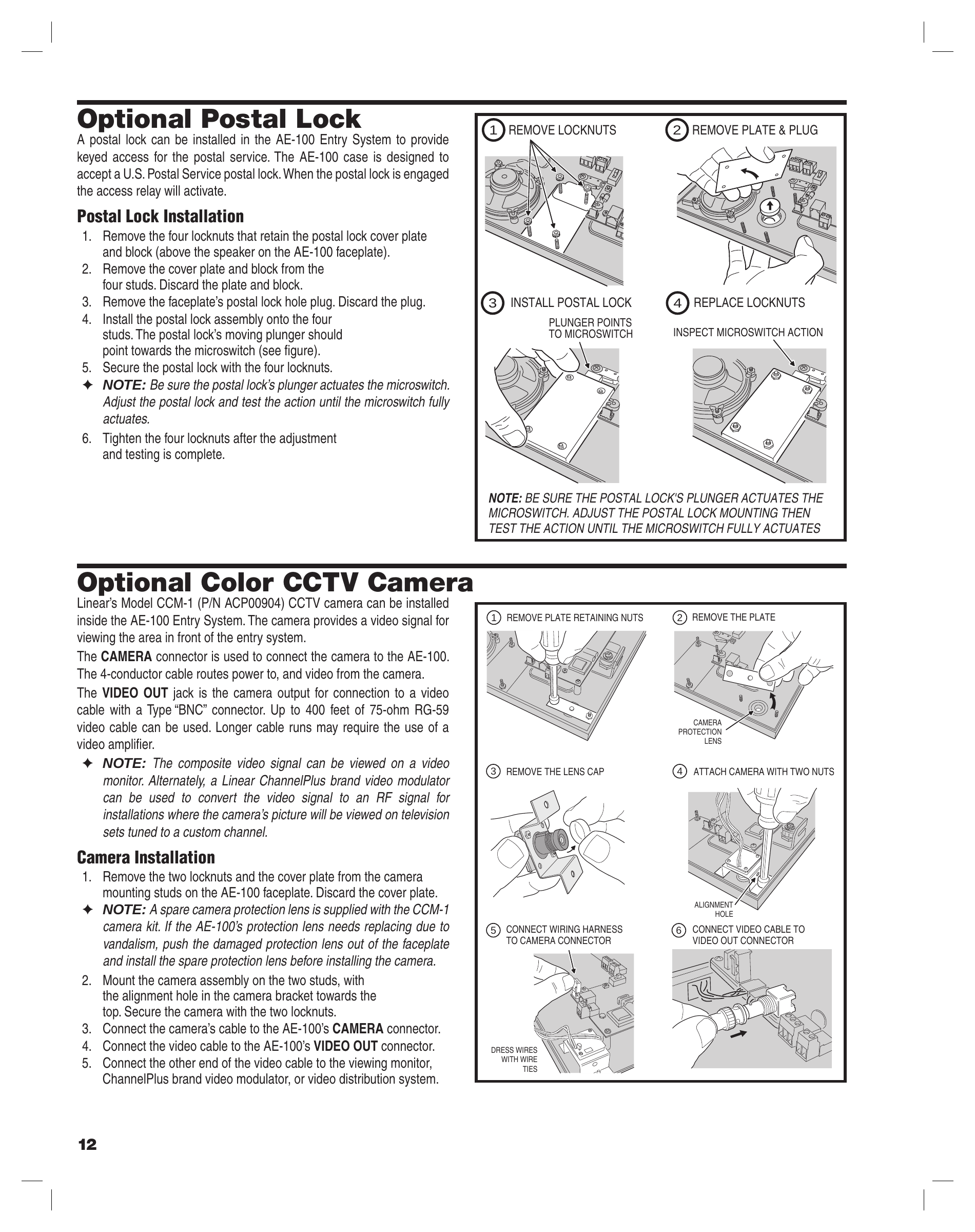

Page containing instructions for installing an optional postal lock and a CCTV camera in an AE-100 Entry System, with diagrams illustrating steps and components.

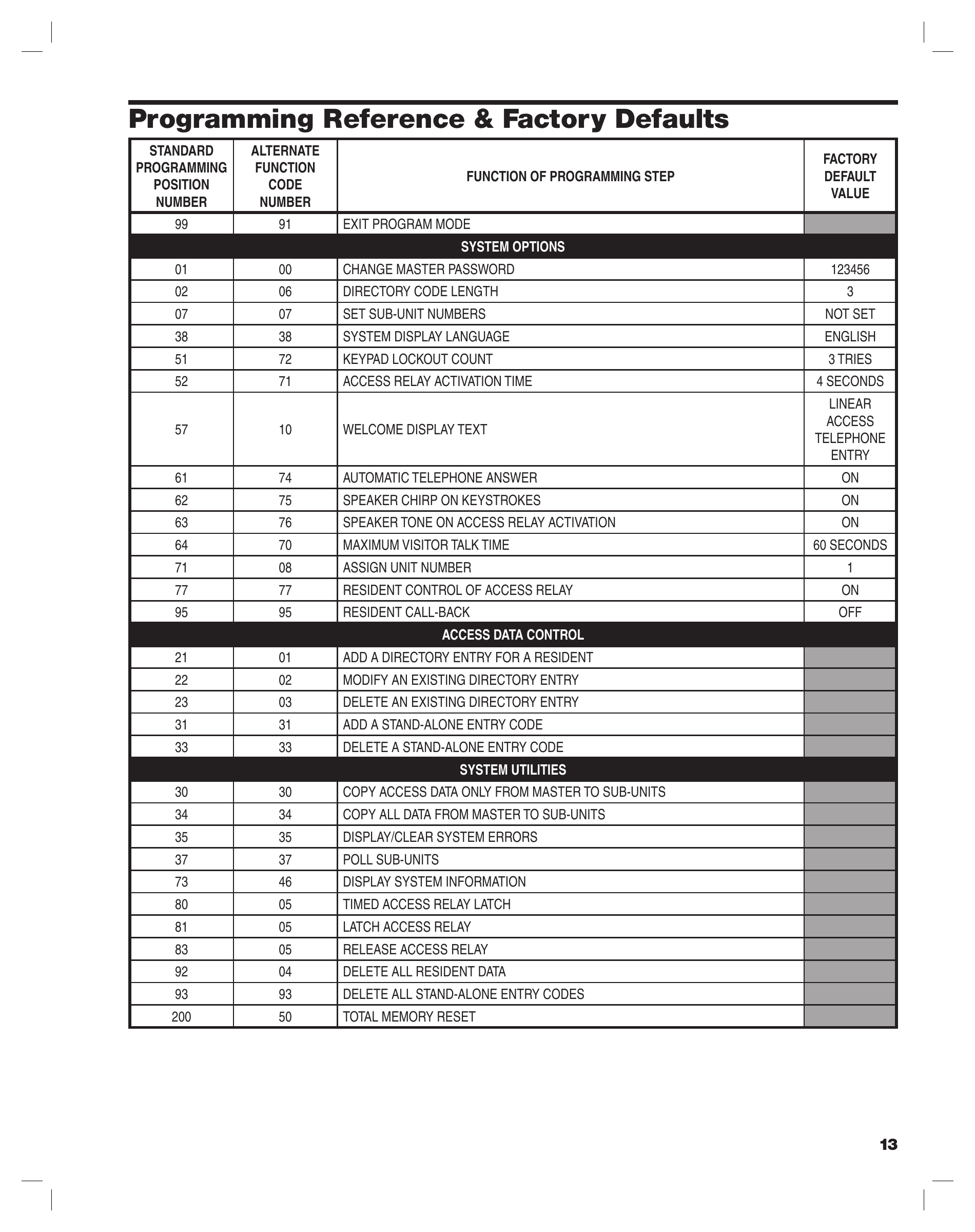

Page 13 of a technical manual or programming reference sheet showing a table with various system options, functions, and default values related to programming and data control. The table includes categories like system options, access data control, system utilities, and memory reset, with numbered entries and descriptions for each.

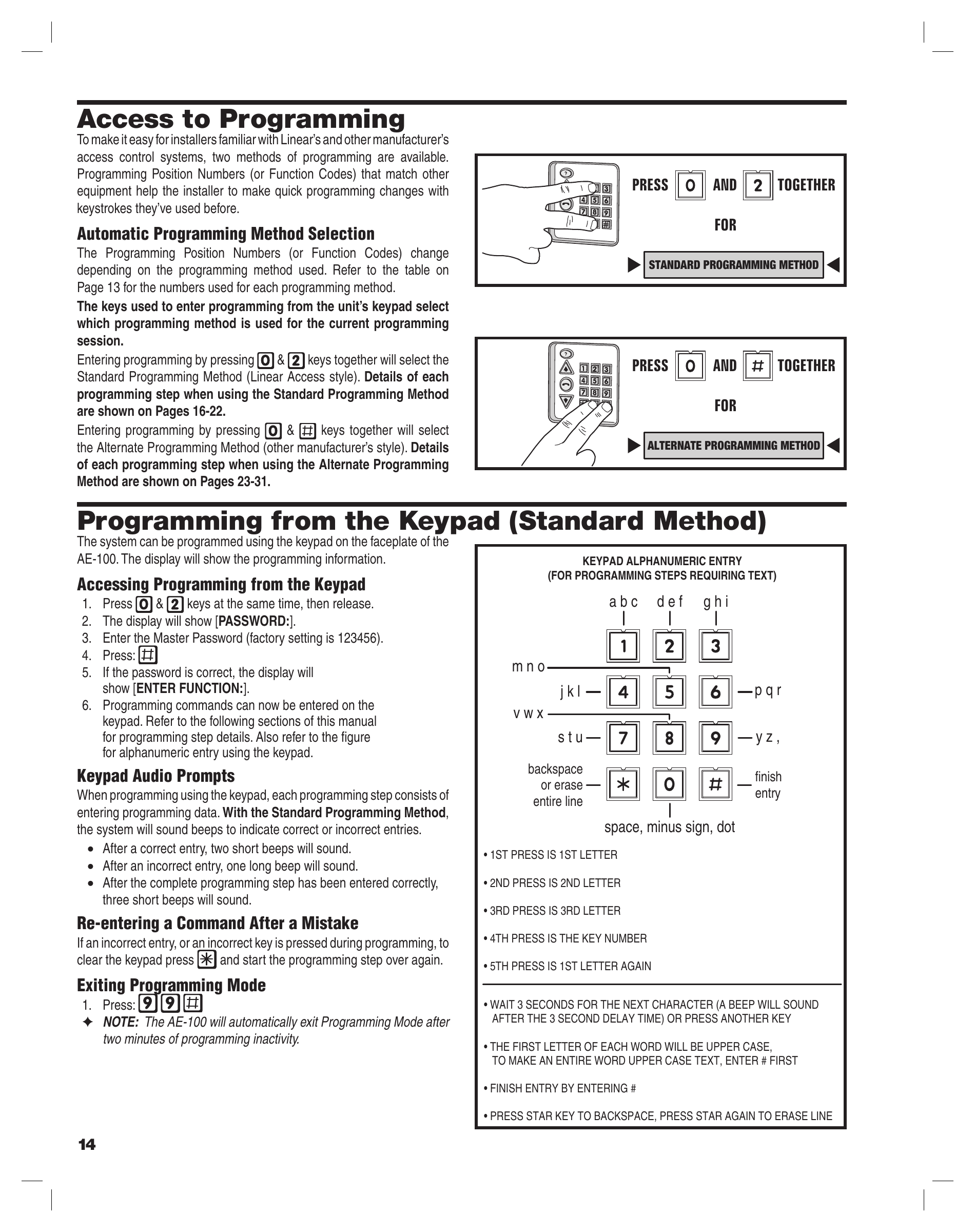

Page from a manual explaining access to programming features of a device, with diagrams of keypad entries for different programming methods, including standard and alternate methods.
Page from a manual titled 'Programming Over the Telephone' with instructions, diagrams, and tables about programming a telephone system, featuring illustrations of a telephone and a remote device.
A technical manual page with instructions on how to change the master password for a security system, including step-by-step procedures, number entries, and configuration settings in a structured format.
Instruction manual page for resident data programming, including steps for changing directory code length, adding a new resident, modifying and deleting directory entries, with example codes and step-by-step instructions.
A page from a manual explaining how to program and manage stand-alone entry codes on a security system keypad. It includes step-by-step instructions for adding and deleting entry codes, with example code formats and programming step numbers.
Page from a technical manual with instructions on system options, keypad lockout count, access relay activation time, welcome display text, automatic telephone answer, and speaker chirp on keystrokes.
A section from a manual or guide explaining system options for access relay control, including tone settings, maximum visitor talk time, resident control, and call-back features with button icons and formatted instructions.

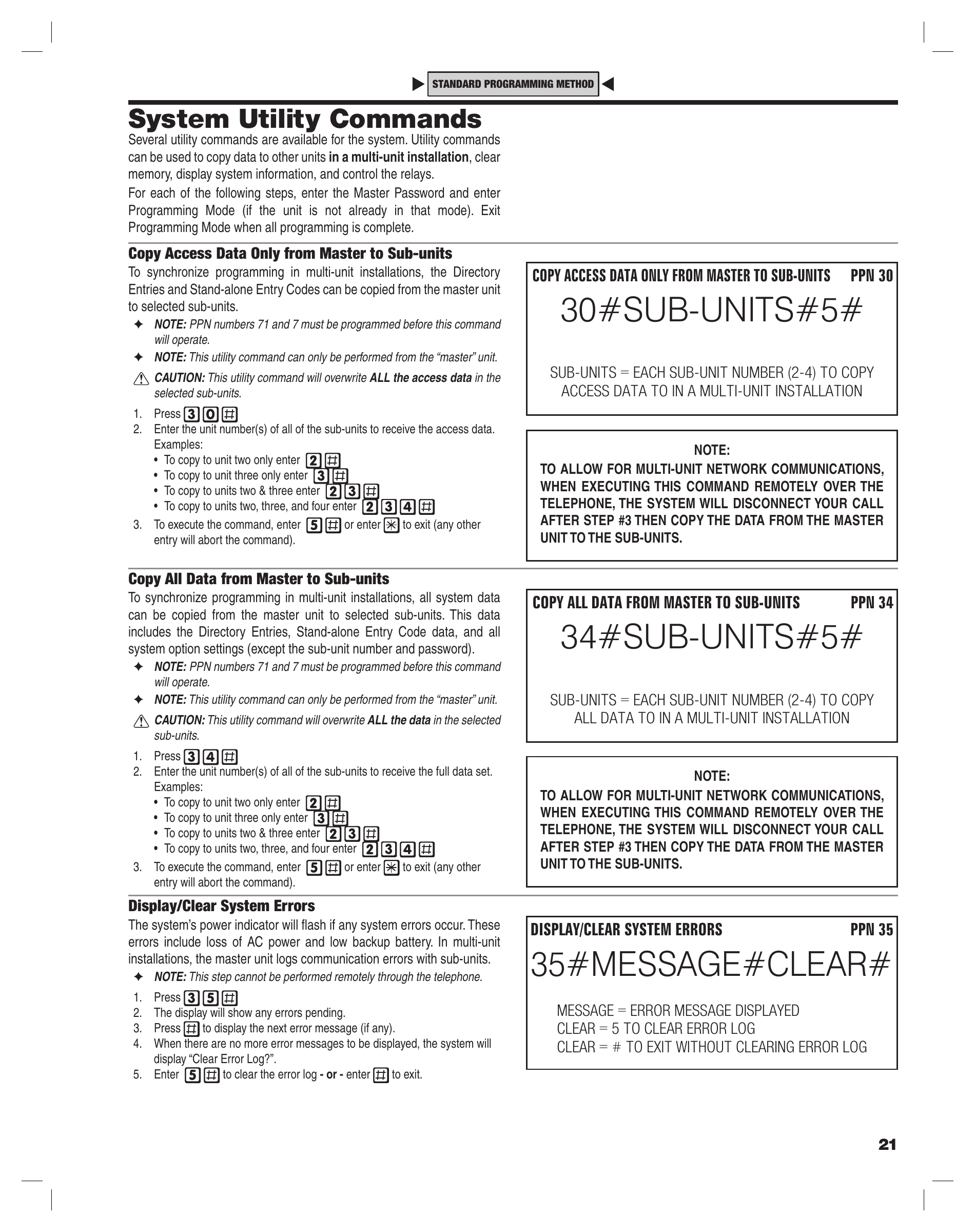

Document page titled 'System Utility Commands' with instructions on programming methods, copying data between master and sub-units, and error message handling, in a technical manual format.
A page from a technical manual explaining system utility commands and their functions, including polling, memory reset, and directory management, with specific button input sequences and descriptions.
Page from a manual showing instructions for alternate programming method on a remote control, with a diagram of the remote, a table of audio prompts, and text instructions for programming steps.
A printed guide for programming a security system, showing steps to set master code, directory code, and telephone number for remote access, with specific instructions for local and telephone programming.

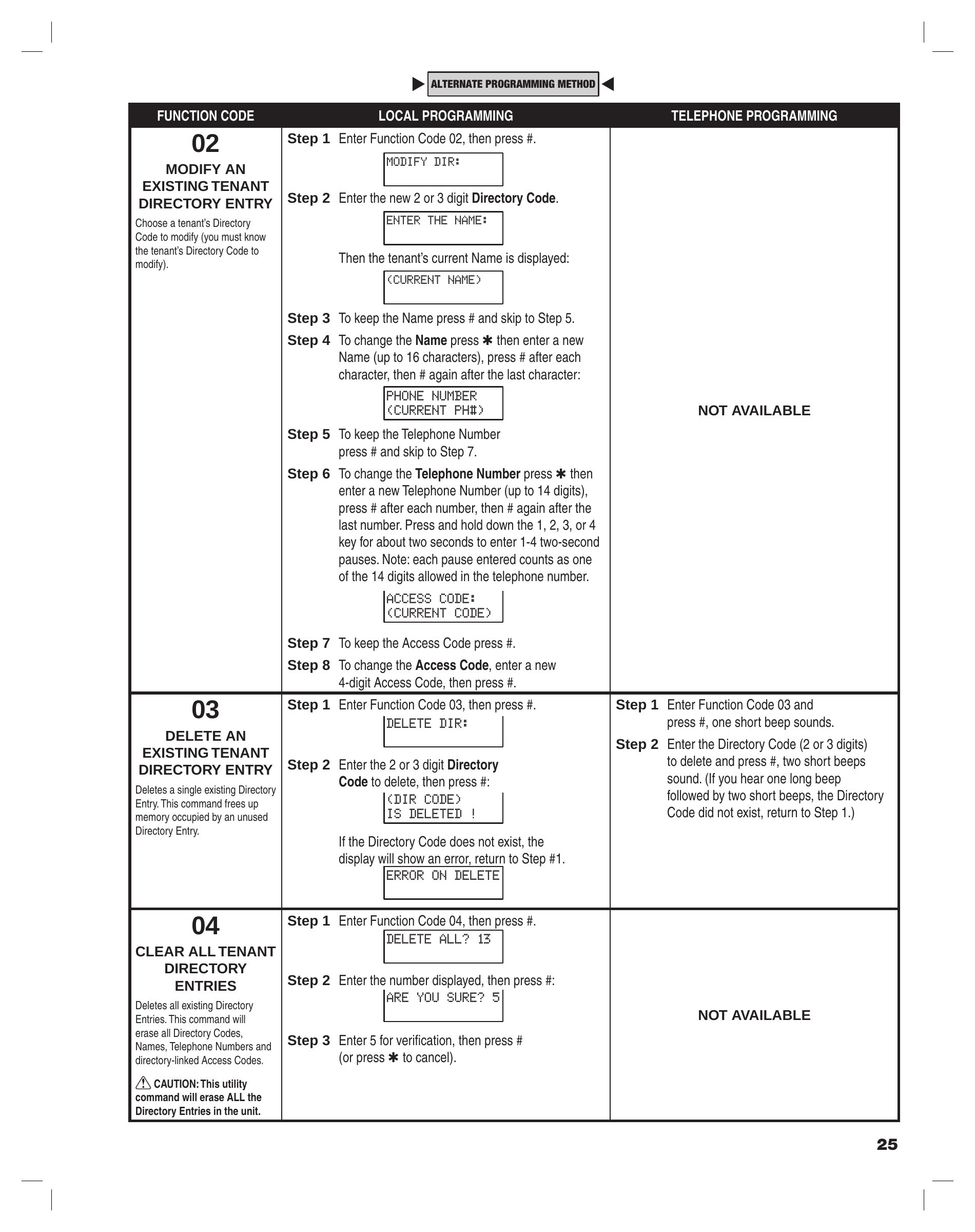

An instructional document detailing various programming methods for managing tenant directory entries, including steps for modification, deletion, and clearance, with specific commands and procedural instructions.
A detailed instruction manual page for programming a security access relay system, with sections on code functions, steps for local and telephone programming, and unit configuration details.
Page 27 of a manual or guide with instructions for programming a system using function codes, including steps for local and telephone programming, with text boxes showing example inputs and notes.

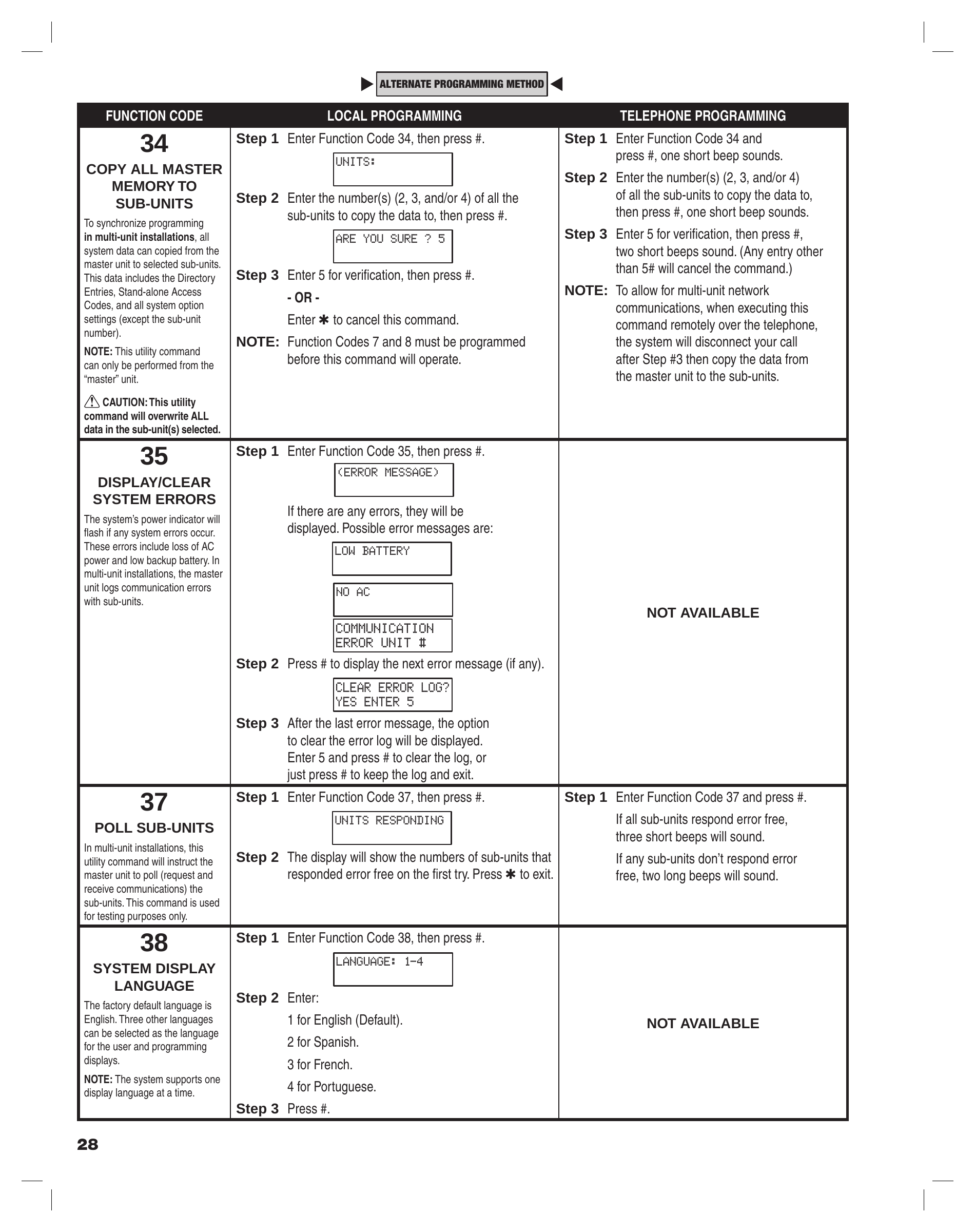

Scan of a monochrome instructional manual page with sections on programming functions, error displays, language settings, and sub-unit polling commands. Contains numbered steps, descriptive text, and example code snippets.

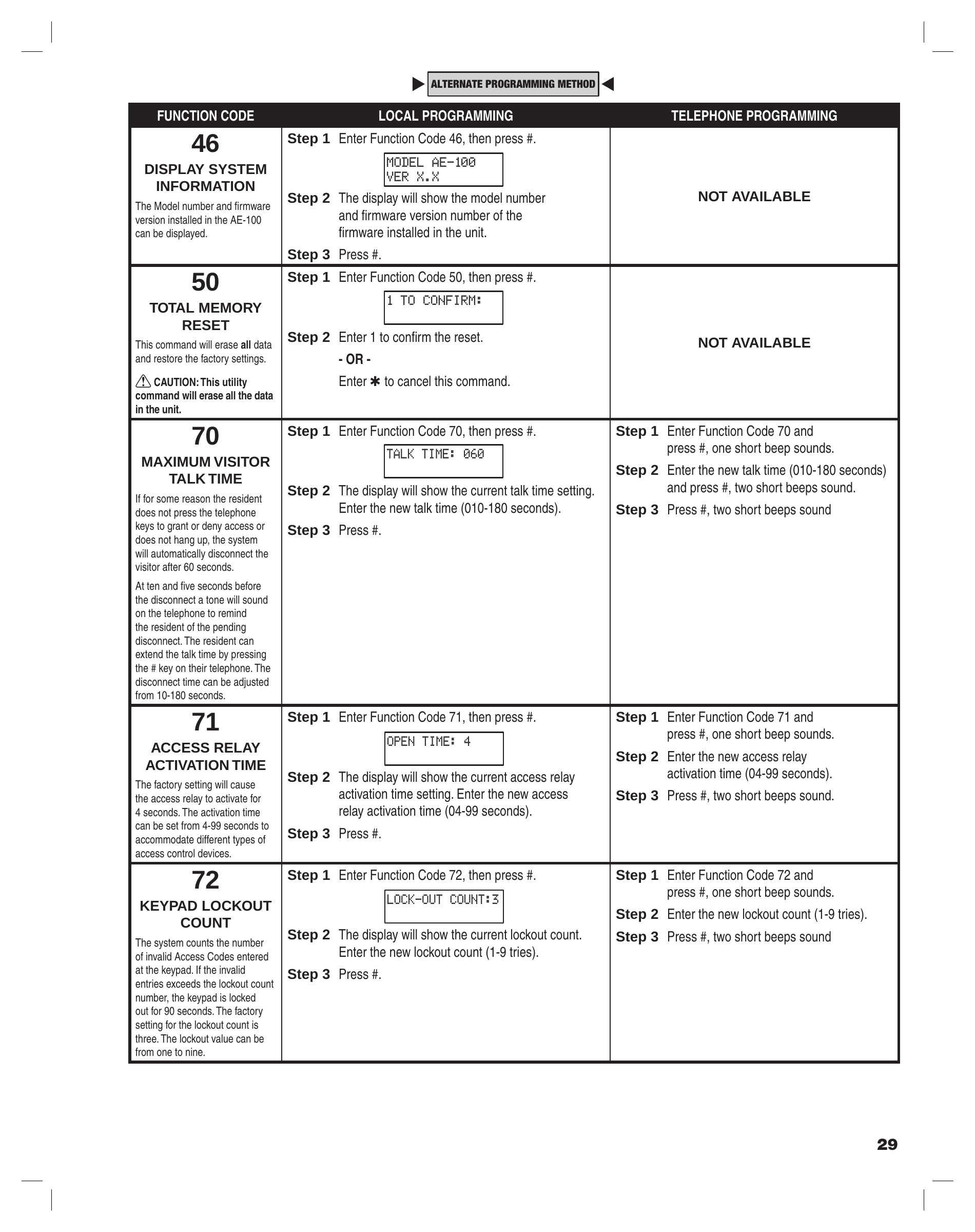

A printed instruction sheet for programming features of a security system. Shows steps for entering function codes, viewing model and firmware info, resetting memory, setting maximum visitor talk time, activating access relays, and lockout count, with sample screens and brief descriptions.
Page from a manual with instructions for various programming and configuration tasks for a security or alarm system, including setting auto-answer, keypad chirps, relay tone, and resident control via function codes.
Black and white instructional chart with three sections detailing programming codes for a device. Each section includes step-by-step instructions and notes for different function codes: 91, 93, and 95. The chart has a title banner labeled "ALTERNATE PROGRAMMING METHOD" and a page number 31 at the bottom right corner.
A diagram of a circuit board with labeled components, including power, phone, status, battery, relay, reset button, speakerphone volume adjustment, digital speech volume adjustment, display contrast adjustment, and on-board indicators.
Instruction sheet for the AE-100 intercom system detailing Requesting Access with a Visitor Call, Resident Call-back, and Resident Call procedures, including diagrams of keypad operations and button press instructions.
Page 34 of a technical manual showing a diagram of a security camera with its associated components including connectors, a trim ring, a curb mount gooseneck, and a burial mount gooseneck. The diagram labels include model numbers and part numbers.
Page of a troubleshooting manual with troubleshooting tips for a system that is completely dead, including checks for power and wiring, and warnings about warranty and FCC notices.
Empty white background with a copyright notice at the bottom left and a small code at the bottom right.
