Emtek Emtouch Manual

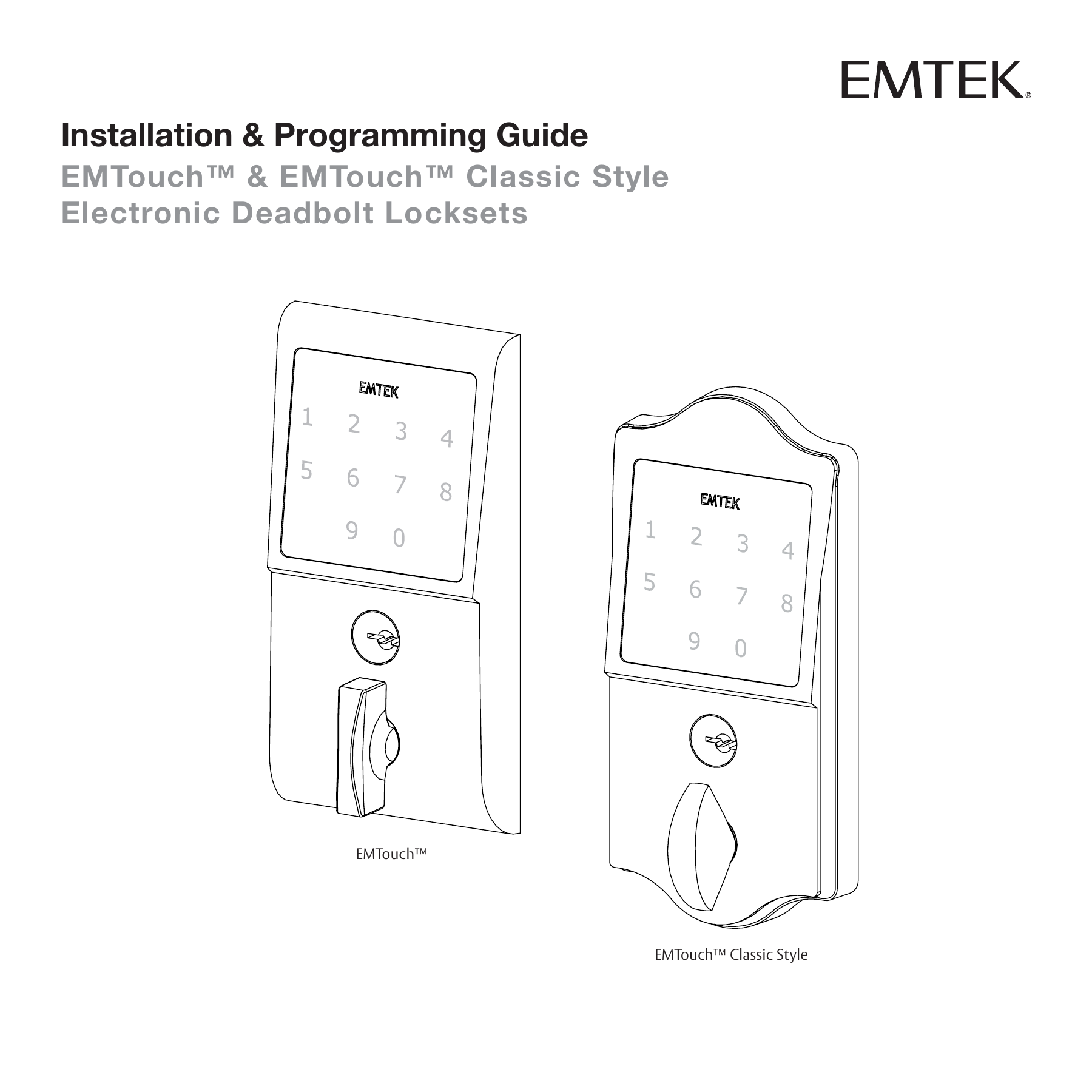

Line drawing of two electronic deadbolt locksets, one in classic style and one in modern style, with the brand EMTEK on the keypads.
Technical diagram of a door lock assembly with numbered parts and a parts list, including keys, trim plates, screws, batteries, strike plate, and security plate.
Page from a DIY door preparation instruction manual showing diagrams of door prep, including backset, bore diameter, edge bore, and hole depth measurements, along with steps for securing a strike and security plate using wood screws.
Diagram showing how to install a latch on a door frame. The latch must be oriented correctly and secured with screws. Instructions emphasize that the latch assembly must be in the shown orientation and the bolt in the retracted position.
Diagram showing how to feed a wire harness through an inside chassis for installation, with close-up views of the harness and screws.
Diagram of connecting wire harness and tuck connectors, with instructions to connect and tuck as shown, including installing a 9V battery.

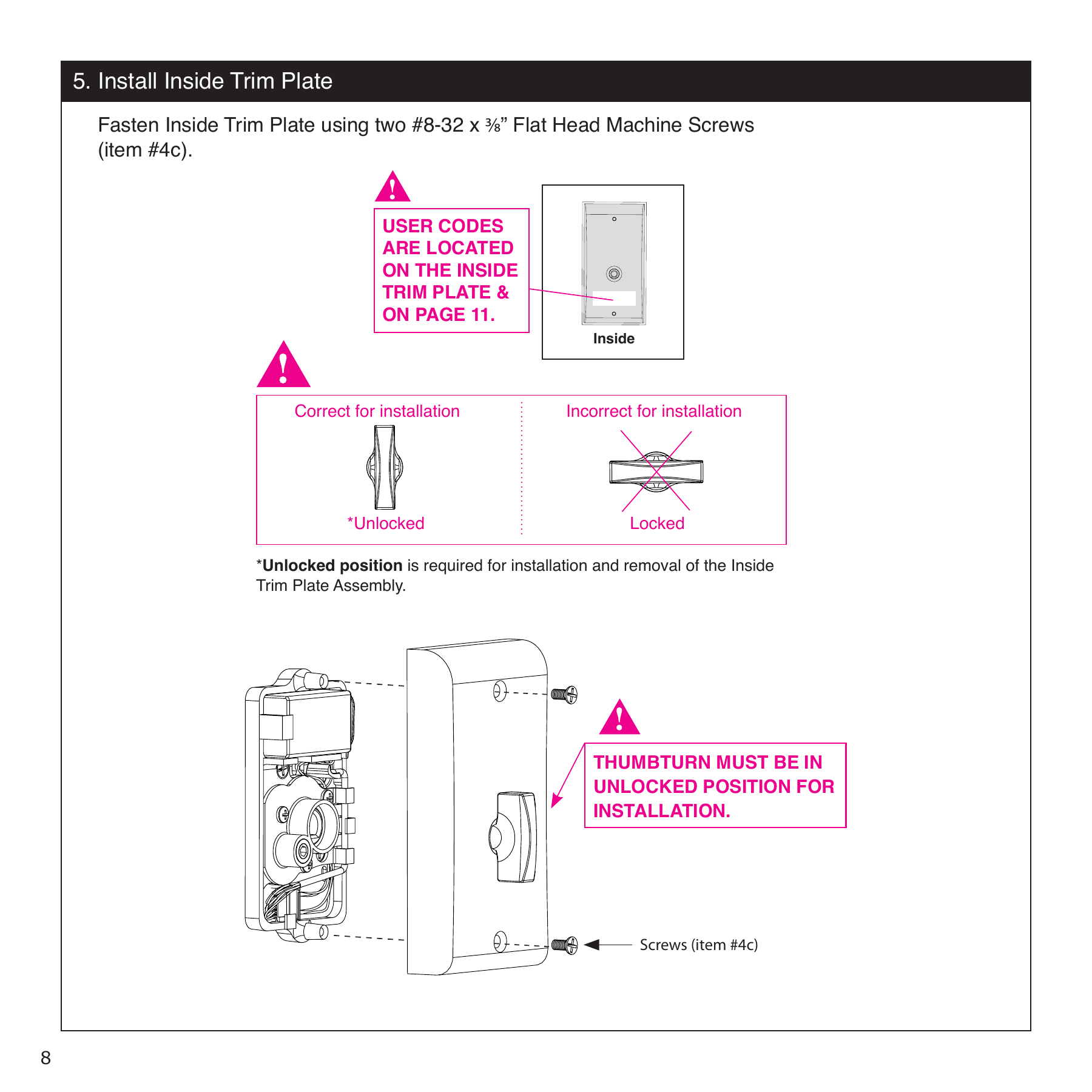

Instruction page showing steps for installing an inside trim plate, including details on user codes, correct and incorrect installation positions, and screw placement for the trim plate.
Page providing instructions on how to unlock a lock using an Emtek keypad. The page includes a diagram of the keypad with arrows pointing to different parts and numbered steps for unlocking the lock, emphasizing pressing the EMTEK key or touch, entering user codes, and rotating the thumb turn.

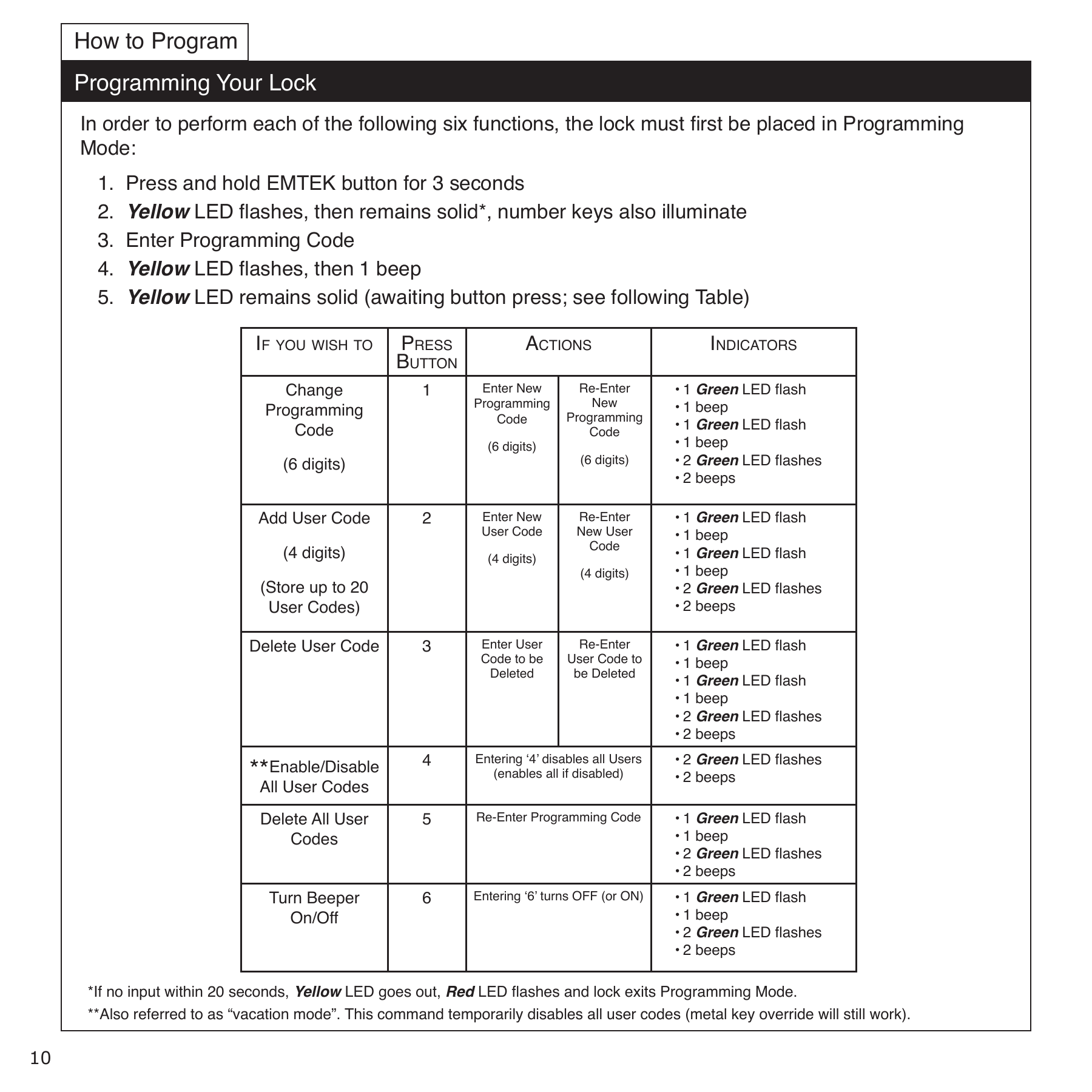

A page from an instructional manual on programming a lock, detailing steps and indicators for programming lock functions, including LED behaviors, button presses, and codes.

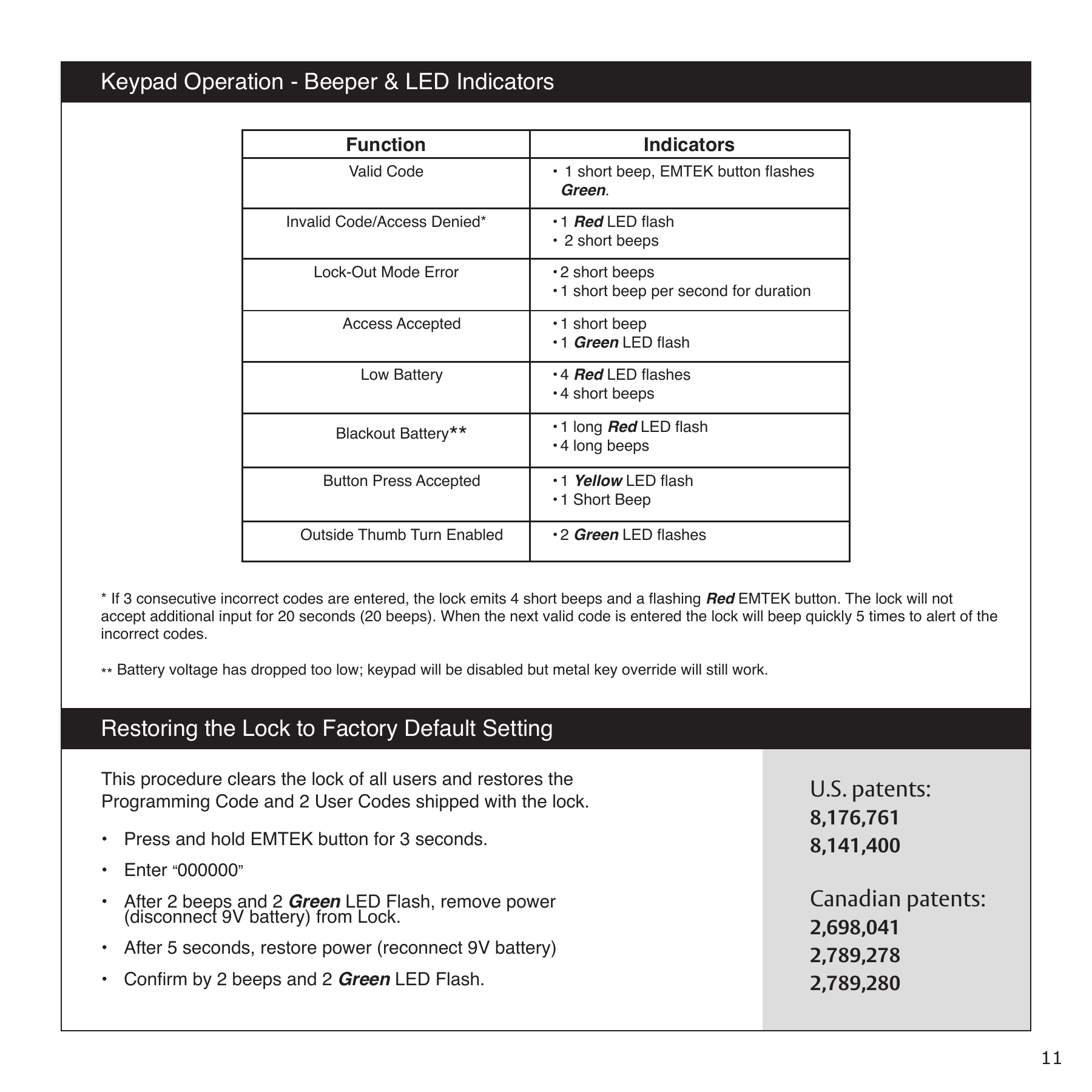

Instruction manual page for resetting a lock to factory default settings, with details on procedures, U.S. and Canadian patent numbers.
A template for a sticker or label with a large area marked 'Place Sticker Here' and space for text and barcode. The template is from Emtek, a hardware company, with contact details and copyright information at the bottom.
