Camden CM-120 Manual

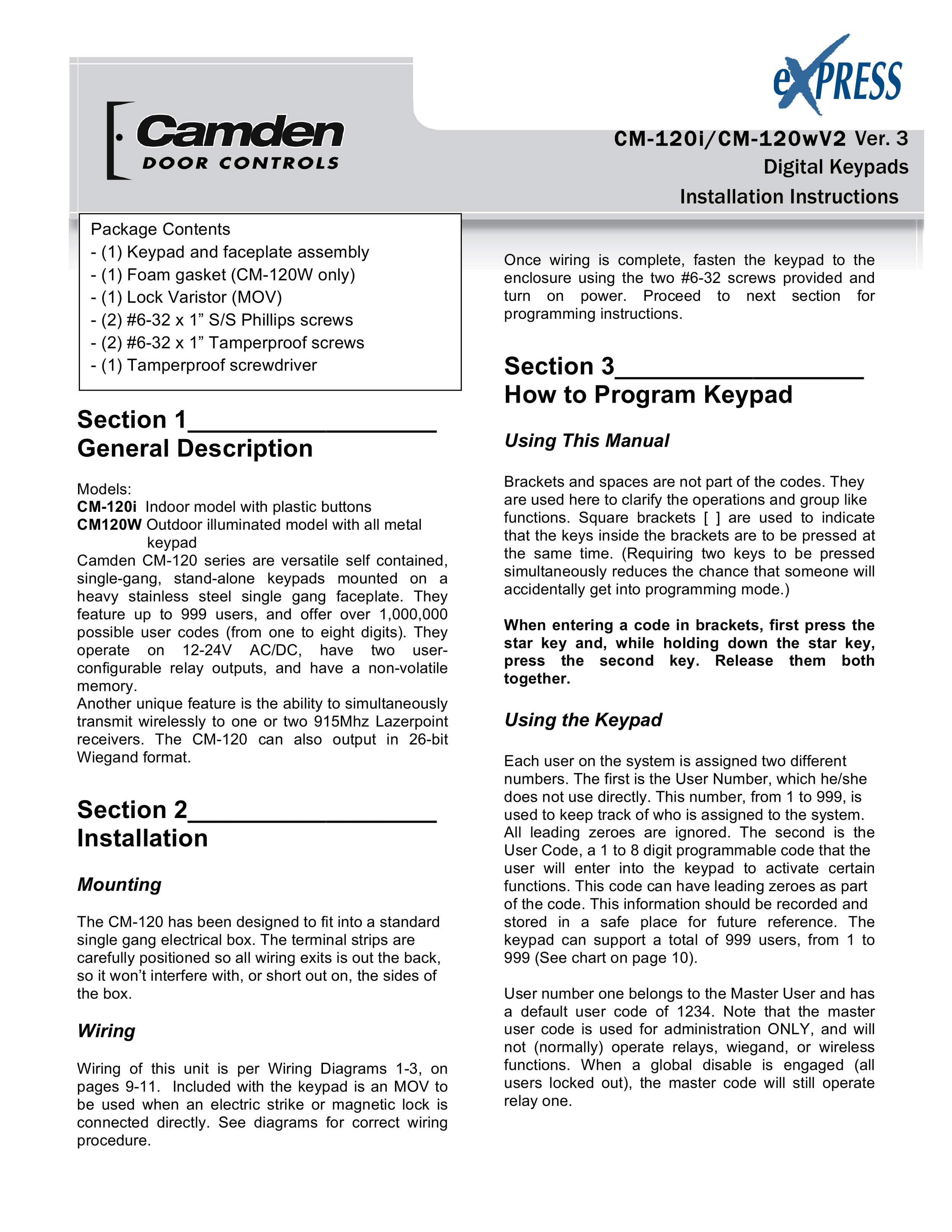

Page from a manual for Camden door controls, specifically the CM-120i and CM-120w digital keypads. The page contains sections about general description, installation instructions, wiring, and programming.
A page of instructions for a keypad system, including setup and programming details, with sections about LED indicators, user codes, and programming commands.

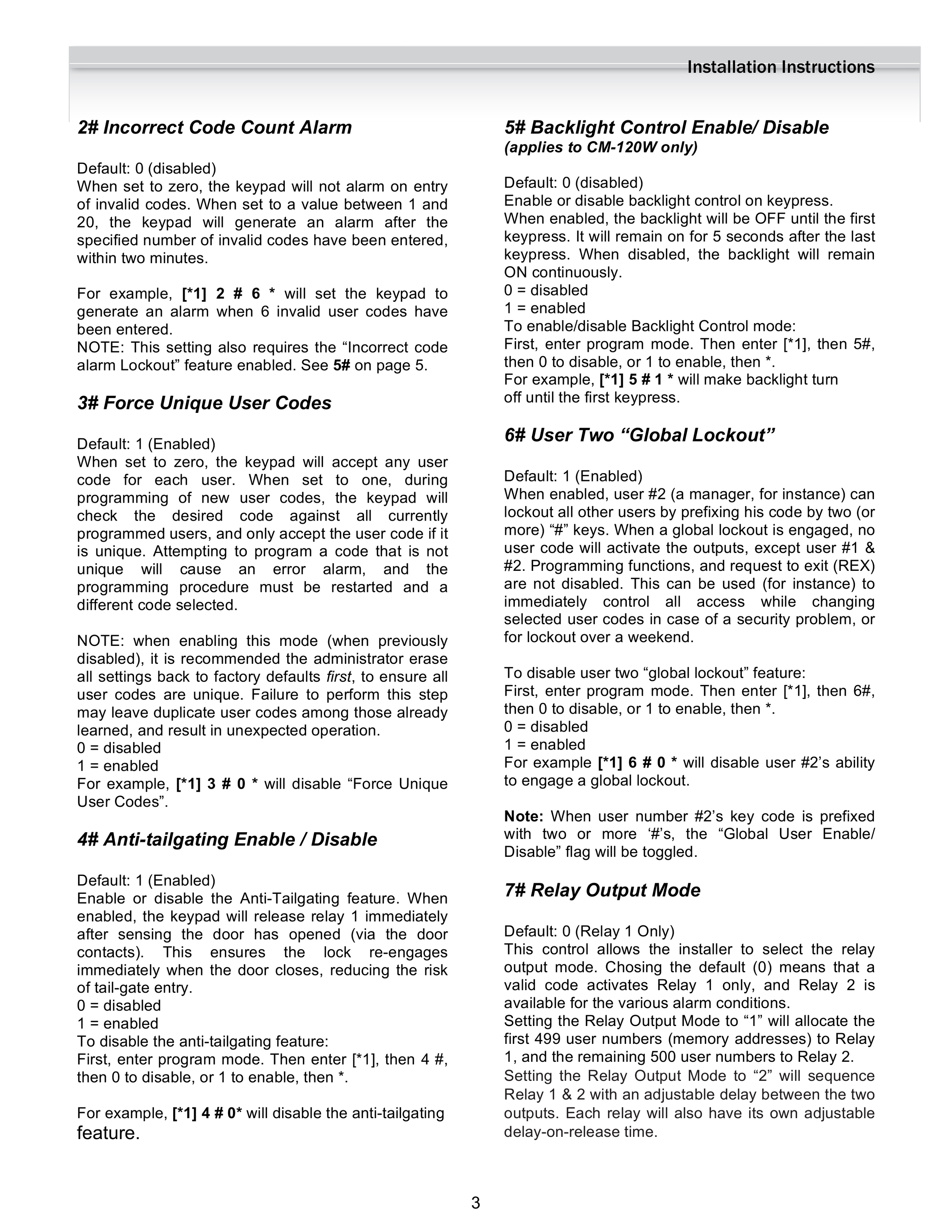

Technical manual page with installation instructions, section titles, numbered points, and detailed descriptions of alarm system settings and features.

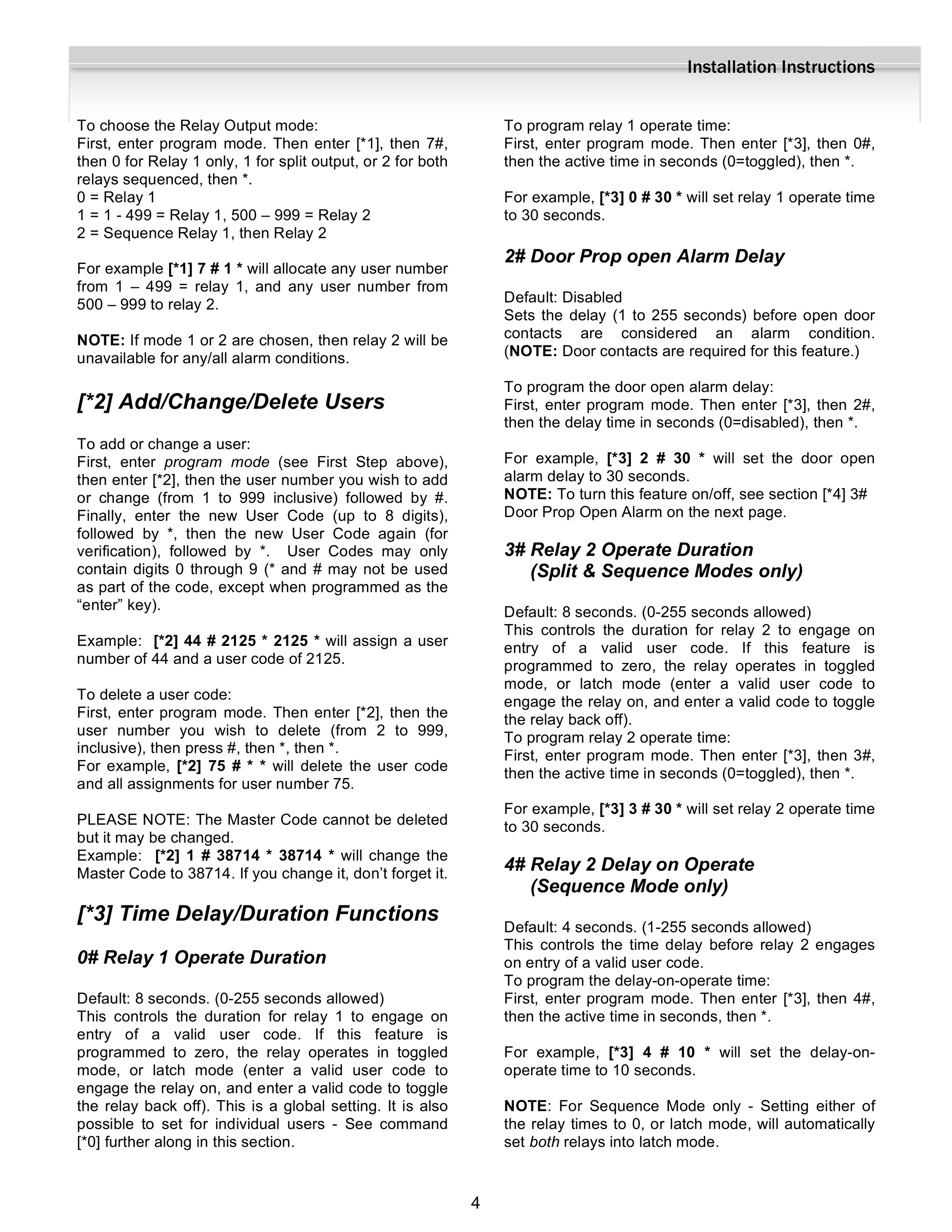

Page from an instruction manual with text explaining relay output modes, programming relay times, user code management, and delay functions.
Page from a manual with installation instructions, showing programming multiple alarm functions such as latch mode, alarm control, stuck key alarm, door prop open alarm, incorrect code alarm, and door forced open alarm.
A digital instruction manual page with technical setup and programming instructions, including numbered and bulleted lists, describing configuration for a security or alarm system.

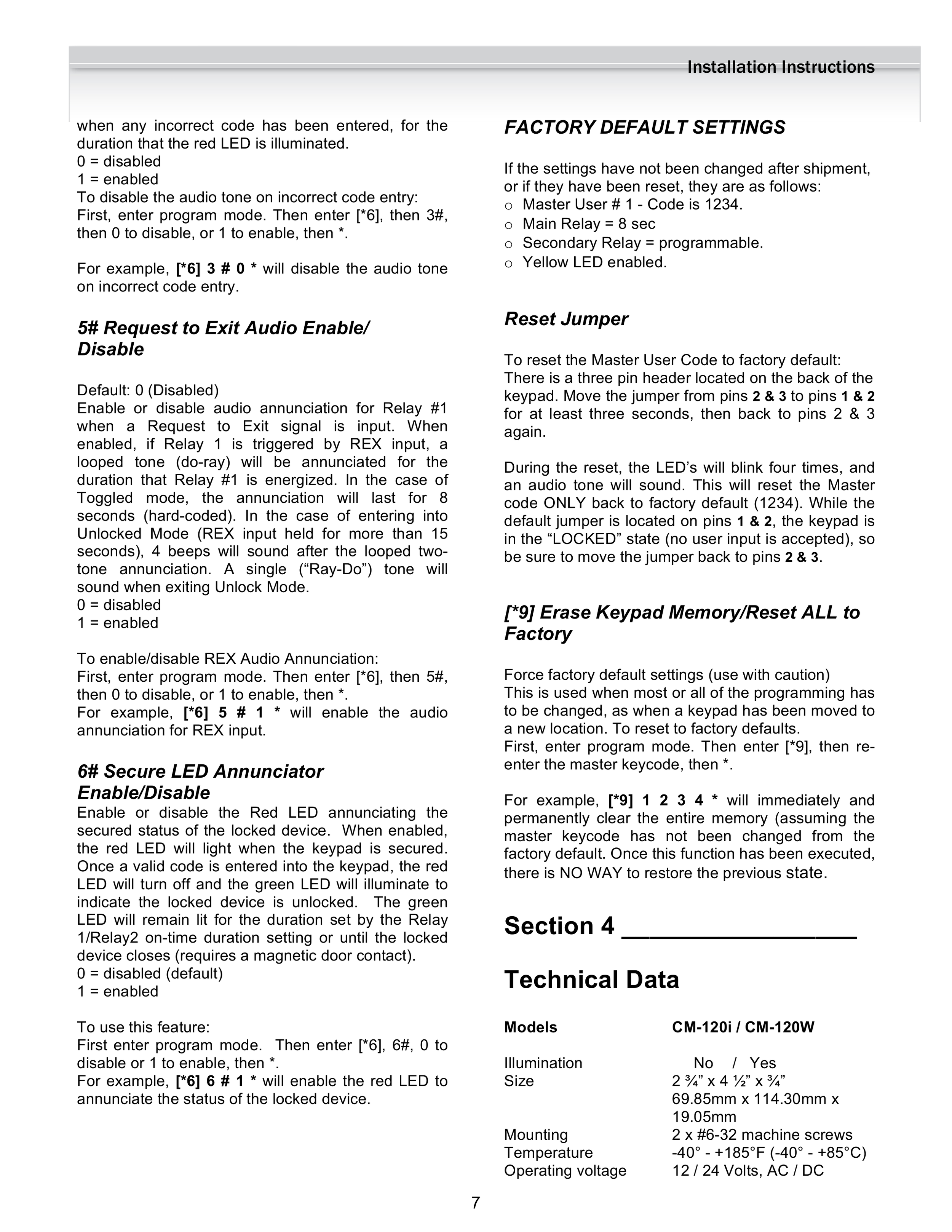

A page of technical instructions from a manual, including sections on factory default settings, reset jumper, and feature enable/disable, with specifications for models CM-120i and CM-120W.
Page from an installation and troubleshooting manual for a security access control system. It shows a section discussing push buttons, key pads, strikes, magnetic locks, key switches, relays & timers, and access control devices. The bottom part of the page contains product images with labels and descriptions.

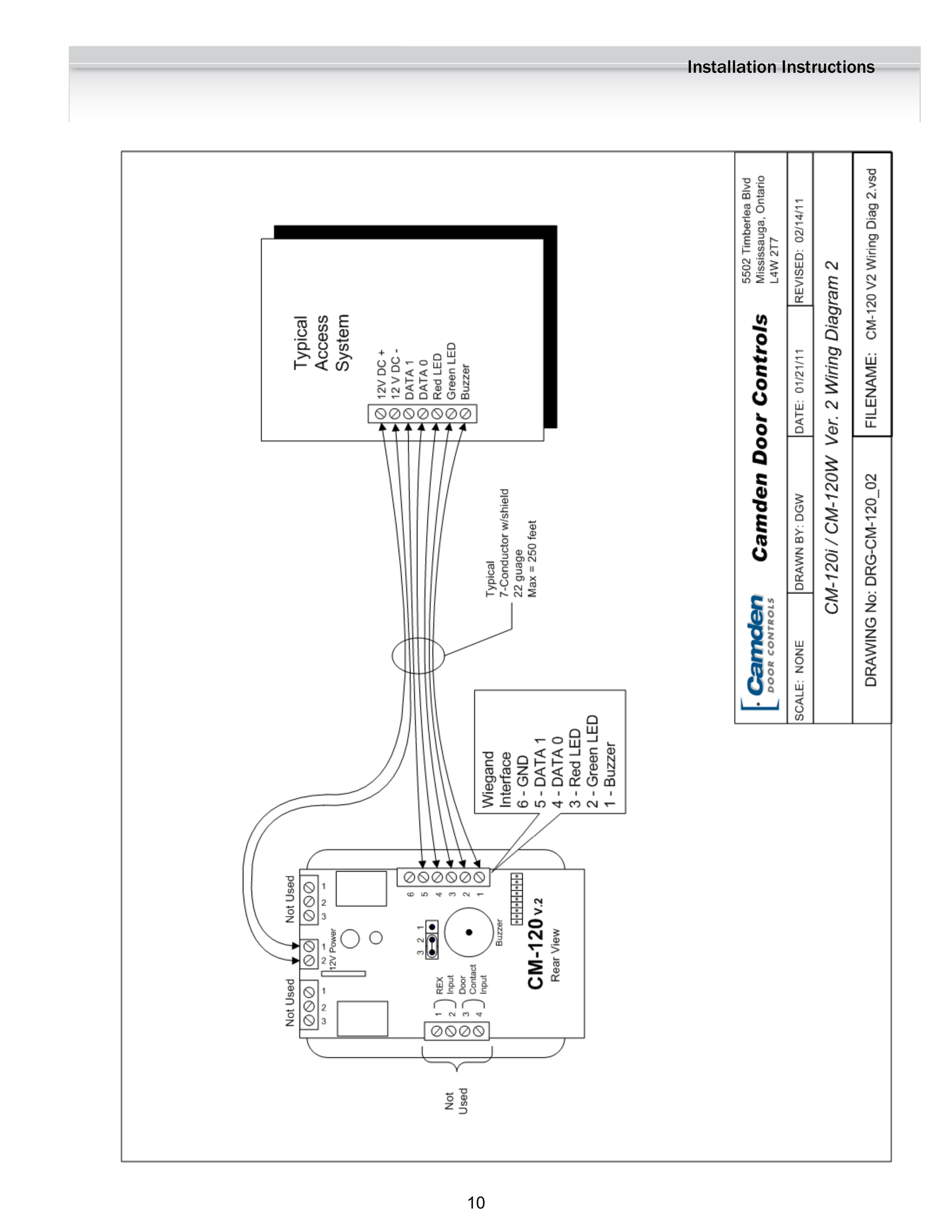

Electrical wiring diagram for Camden Door Controls including relays, switches, power supply, and various connections for a door security system.
Diagram of an electronic door control system showing connection points, wiring, and control components with labels and specifications.
Technical diagram of a Camden Door Controls system, showing a main control device with labeled connectors, wiring instructions, and optional components related to access control and communication.
A table titled 'Installation Instructions' displaying numbered user names, memory addresses, and user codes. The table lists entries from 1 to 44 with corresponding details. The bottom note says 'Make additional copies as required...' and the page number is 12.
